Luminaires of UFO and linear high-bay lights are widely used in the field of industrial lighting, which are usually installed under the high top of the workshop. The large size, big weight and complicated structure of the luminaires result in difficult operation and unsafety during the installation. Meanwhile, in order to facilitate customer dimming operations, achieve dimming and shutdown, and enhance customer experience, the electrical performance of the luminaires also needs to be improved.
Designing small, light, and compact lighting products with high performance has become the primary factor in product development. Sosen has launched the compact L-E series of isolated LED driver to simplify the design of luminaires by reducing the weight and size , and make the installation of the entire lamp more conveniently.

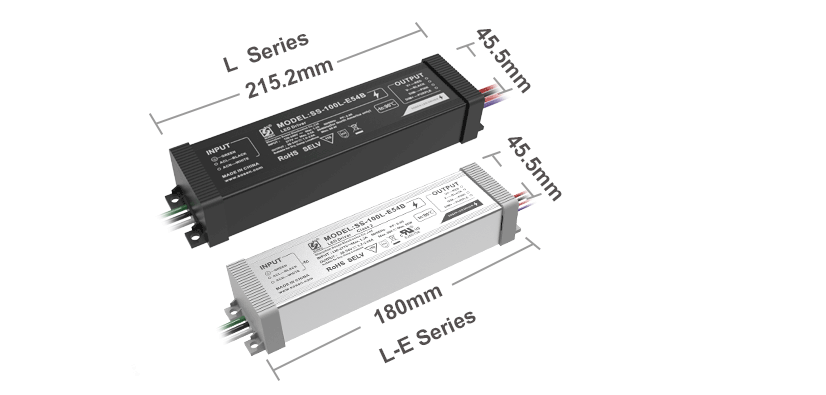

Compact and light design
01.gif "L-E(en)01.gif")
• Regular version: 75/96W, size, weight 215.2*45.5*31mm/530g
• New version: 80/96W, size, weight 180*45.5*31.5mm/450g

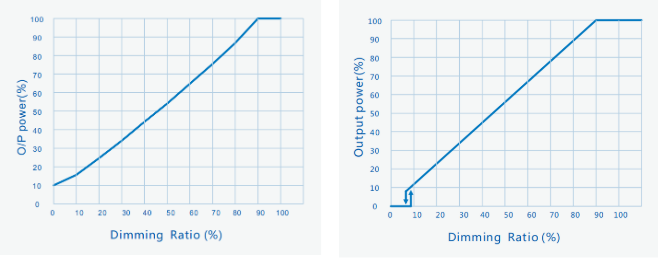

Realize complete dim-off
• Upgrade 1-10V to 0-10V dimming, realize complete dim-off

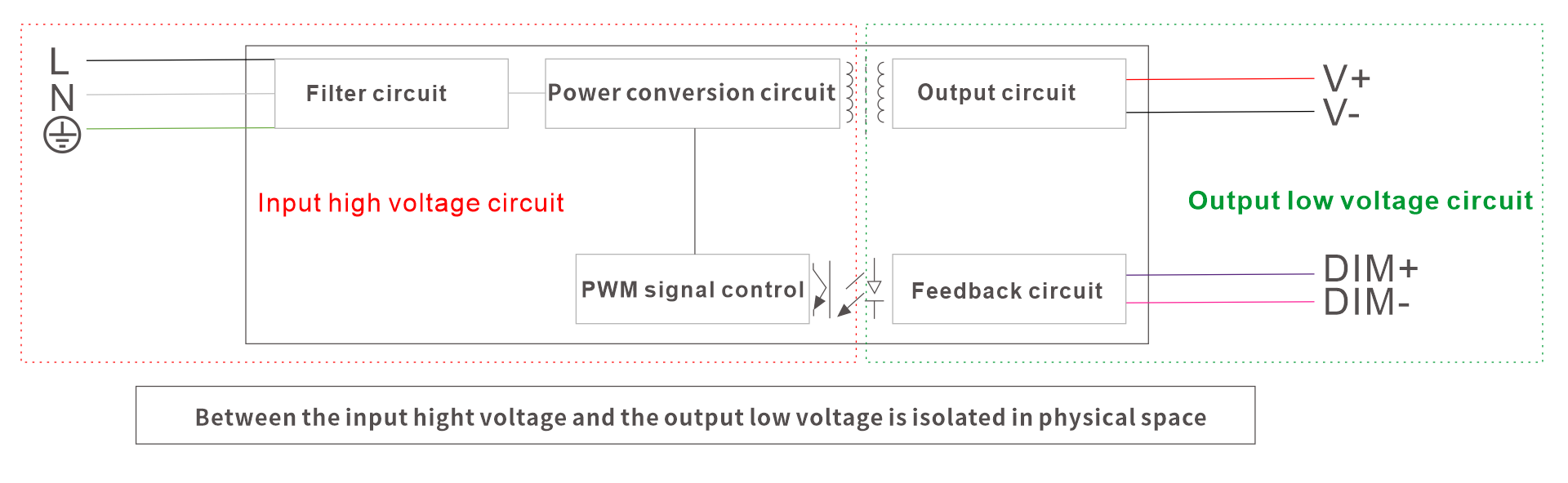

Primary/Secondary circuit isolation
• Output isolated low voltage, high level protection to LED luminaire
Certificate
• Meet certification requirements:UL/Class 2/SELV, makes lighting fixture design easier and widens the application scope

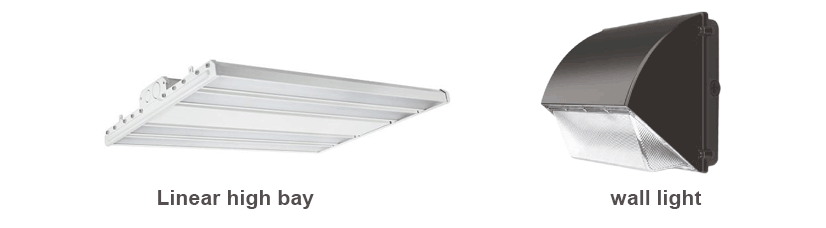

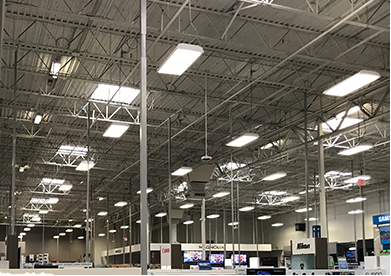

Typcial application
04.gif "L-E(en)04.gif")

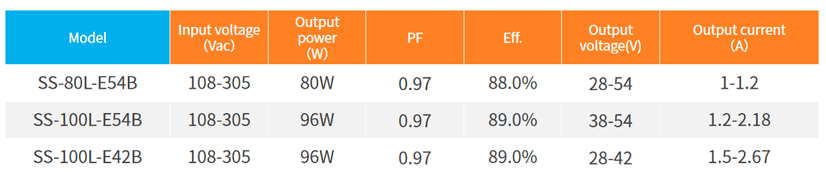

Product model
03.gif "L-E(en)03.gif")
