Company News
![[New product information] Small and medium power LED Driver](/static/images/clock.png)
2018-10-09 11:50:12
Sources：Shenzhen SOSEN Electronics Co.,Ltd.
![[New product information] Small and medium power LED Driver](/userfiles/images/2021/05/04/2021050419506392.jpg)
Design Concept

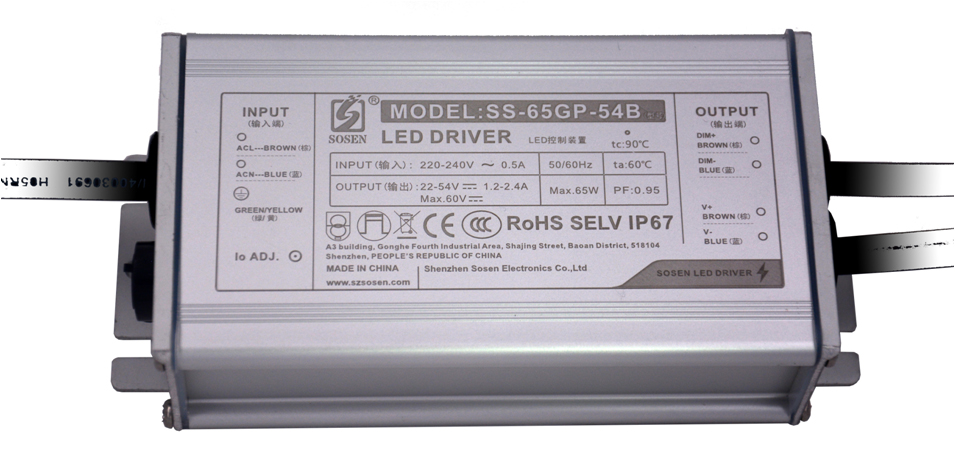

In response to the development needs of miniaturization of LED drive power supplies, Songsheng Electronics newly launched the GP series of LED drive power supplies to meet the applications of low-power LED street lights, tunnel lights, flood lights, and garden lights.
GP series continues the design concept of G series products, 202-254Vac input voltage, constant power design, design for lightning protection up to 6KV(L/N-FG)/4KV(LN), working temperature -40~+90℃ case temperature ( Tcase) use, THD<10% and other high-performance indicators, can meet the requirements of industrial environment use, and provide a 5-year warranty.
Provide dimming optional function, which can automatically identify and match three dimming signals of 1-10Vdc, PWM, and resistance.
Features
Power: 65W
Input: 202-254Vac (90-305Vac can work)
88% efficiency, double stage no flicker
Dimming: 1-10V, PWM, resistance
Certification: TUV, CCC
Waterproof: IP67
Protection: short circuit, over temperature, over voltage
Lightning protection: 6kV/4kV
Warranty: 5 years

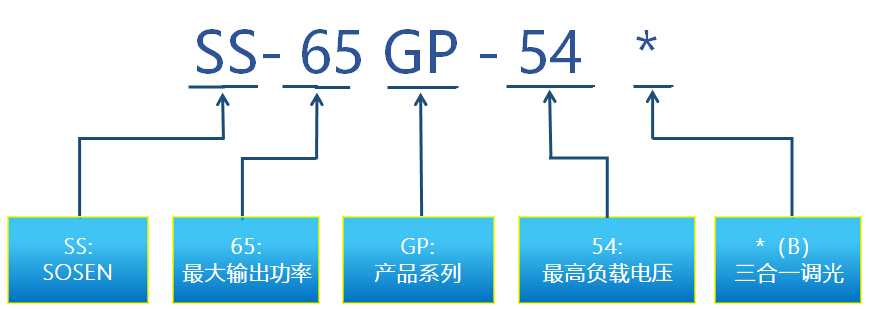

Naming method

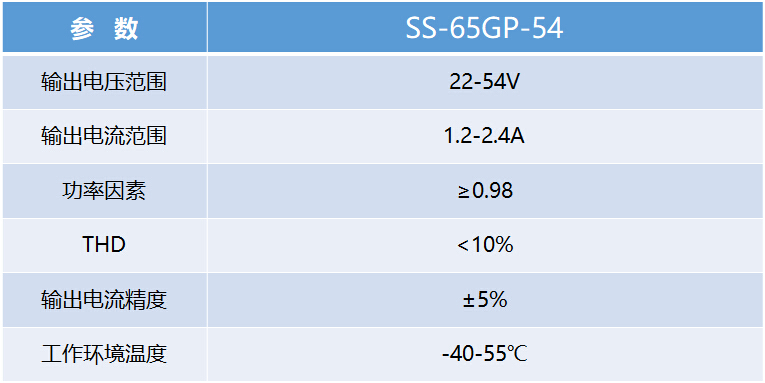

Product specifications

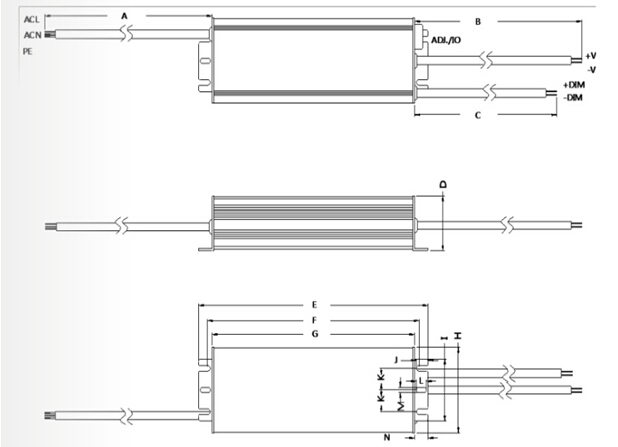

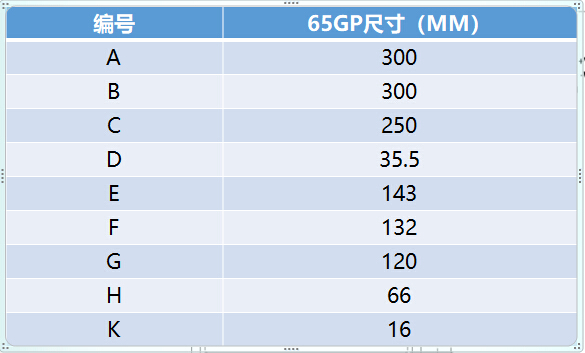

Structure size

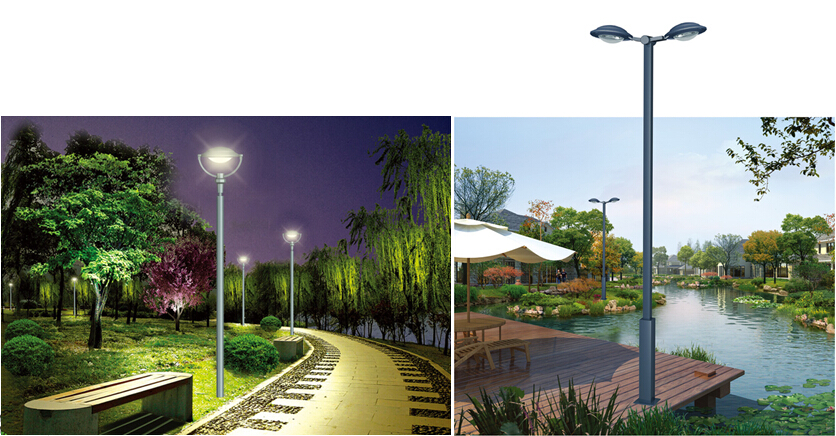

Typical application
GP series LED Drive is suitable for LED lighting applications such as LED street lights, tunnel lights, flood lights, garden lights, lawn lights, etc.
