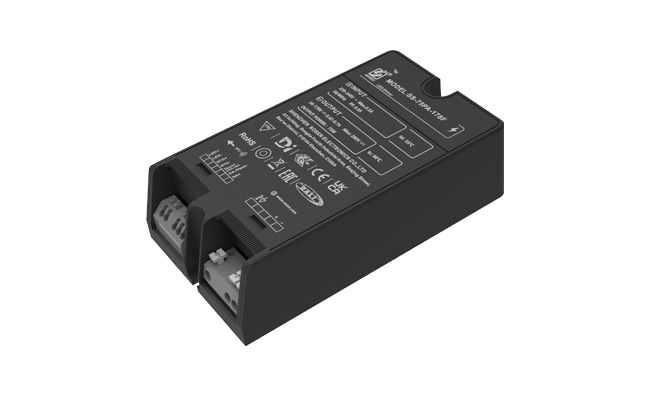

Power：75W
Series：D4i Version
Application：Street light, Tunnel light, Industrial and sports light
Certificate：ENEC, CE, UKCA, EAC, D4i, DALI-2
Warranty：8 years
D4i Version
Efficiency up to 93%
Output current can be adjusted by NFC
DALI-2 & D4i certification
Dim-to-off & Standby power≤0.5W
Surge Protection: CM: 10kV, DM: 6kV
AUX Power: 24V/125mA
Low Inrush Current≤17A
Built-in 16Vdc DALI-2 bus power supply
Built-in AC power metering with up to ±1% accuracy
AC Dimming/Timing/ELA/CLO/NTC
Protections: SCP/OTP/OVP/OPP
Suitable for Class I /II luminaires
IP20
Installation dimensions conform to Zhaga standards
Warranty: 8 years
| Reted input voltage | 220~240Vac |
| Input Frequency Range | 50/60Hz |
| Max. input power | 75W |
| Dimension | 150*90*37（mm） |
| Model | AC Input Range（Vac） | Max. Pout（W） | Vout Range（Vdc） | Full Power Vout Range（Vdc） | Iout（A） | THD(Typ.) | PF(Typ.) | Eff.(Typ.) | Max.Tc |
| SS-75PA-114F |
80-264 171-275 |
75 | 36-114 |
71-114 |
0.2-1.05 | 8% | 0.97 | 92% | 90℃ |
| SS-75PA-178F |
80-264 171-275 |
75 | 56-178 |
107-178 |
0.2-0.7 | 8% | 0.97 | 93% | 90℃ |
| SS-75PA-245F |
80-264 171-275 |
75 | 74-245 |
150-245 |
0.2-0.5 | 8% | 0.97 | 92.5% | 90℃ |
| Carton dimension | L×W×H =488×298×150 (mm) |
| QTY | 24 PCS |
| Net weight/PC | 0.62kg |
| Gross weight/Carton | 15.9kg |
