Power：220W
Series：D4i Version
Application：Street light, Tunnel light, Industrial and sports light
Certificate：ENEC, CE, UKCA, EAC, D4i, DALI-2
Warranty：8 years
D4i Version
Efficiency up to 95%
Output current can be adjusted by NFC
DALI-2 & D4i certification
Dim-to-off & Standby power≤0.5W
Surge Protection: CM: 10kV, DM: 6kV
AUX Power: 24V/125mA
Low Inrush Current≤20A
Built-in 16Vdc DALI-2 bus power supply
Built-in AC power metering with up to ±1% accuracy
AC Dimming/Timing/ELA/CLO/NTC
Protections: SCP/OTP/OVP/OPP
Suitable for Class I /II luminaires
IP20
Installation dimensions conform to Zhaga standards
Warranty: 8 years
| Reted input voltage | 220~240Vac |
| Input Frequency Range | 50/60Hz |
| Max. Pout | 220W |
| Dimension | 171*101*35（mm） |
| Model | AC Input Range（Vac） | Max. Pout（W） | Vout Range（Vdc） | Full Power Vout Range（Vdc） | Iout（A） | THD(Typ.) | PF(Typ.) | Eff.(Typ.) | Max.Tc |

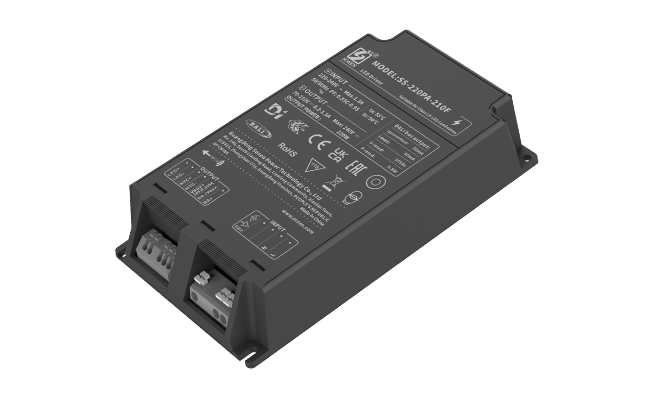

| SS-220PA-210F |
80-264 168-280 |
220 | 70-210 |
147-210 |
0.2-1.5 | 6% | 0.98 | 94.3% | 90℃ |
| SS-220PA-314F |
80-264 168-280 |
220 | 104-314 |
210-314 |
0.2-1.05 | 6% | 0.98 | 94.5% | 90℃ |
| SS-220PA-415F |
80-264 168-280 |
220 | 133-415 |
314-415 |
0.2-0.7 | 6% | 0.98 | 95% | 90℃ |
| Carton dimension | L×W×H =445×225×145 (mm) |
| QTY | 12PCS |
| Net weight/PC | 0.85kg |
| Gross weight/Carton | 11.235kg |
