Power:730W
Series:CC LED Driver
Application:High bay light, Stadium light, Square light, Horticulture light, Fish light
Certificate:UL/cUL, ENEC, CB, Class-P
Warranty:8 years

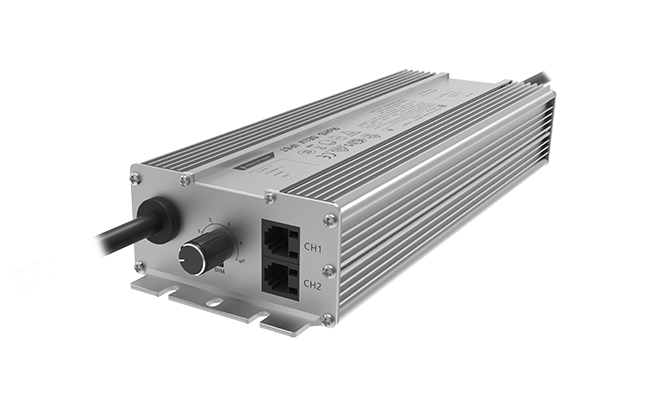

CC LED Driver
Efficiency up to 95.5%
Dimming: 0-10V, PWM, Resistor, Timing
Dim-to-Off
Surge Protection: CM: 10kV, DM: 6kV
AUX Power: 12V/0.3A
Constant Lumen, Life Warning
Standby Power<1W
IP67
Communication Function With PC
TYPE HL, suitable for hazardous locations
Protections: SCP/OTP/OVP
Warranty: 8 years
Reted input voltage | 100~277Vac |
Input Frequency Range | 50/60HZ |
Max. Pout | 730W |
Dimension | 430*89*44.5(mm) |
Model | AC Input Range(Vac) | Vout Range(Vdc) | Full Power Vout Range(Vdc) | Iout(A) | THD(Typ.) | PF(Typ.) | Eff.(Typ.) | Max.Tc |
SS-730VP-56BH | 90-305 | 28-56 | 48-54 | 1.75-15.2 | 10% | 0.95 | 95% | 90℃ |
Outside carton dimension | L×W×H =495×385×162 (mm) |
Number of packages per Carton | 5 PCS |
Net weight/PC | 3.3kg |
Gross weight/Carton | 17.7kg |
