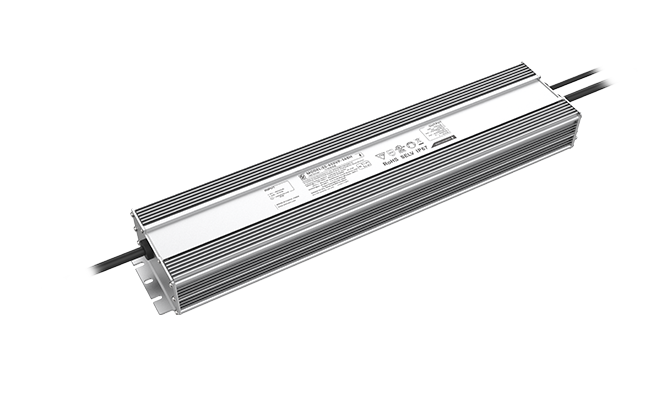

Power：650W
Series：CC LED Driver
Application：High bay light, Stadium light, Square light, Horticulture light, Fish light
Certificate：UL/CUL, ENEC, CB, CE, Class-P
Warranty：8 years
CC LED Driver
Efficiency up to 96%
Dimming: 0-10V, PWM, Resistor, Timing
Dim-to-Off
Surge Protection: CM: 10kV, DM: 6kV
AUX Power: 12V/0.3A
Constant Lumen, Life Warning
Standby Power<1W
IP67
Communication Function With PC
TYPE HL, suitable for hazardous locations
Protections: SCP/OTP/OVP
Warranty: 8 years
| Reted input voltage | 100~277Vac |
| Input Frequency Range | 50/60Hz |
| Max. Pout | 680W |
| Dimension | 430x 89.5 x 44.5（mm） |
| Model | AC Input Range（Vac） | Max. Pout（W） | Full Power Vout Range（Vdc） | Iout（A） | THD(Typ.) | PF(Typ.) | Eff.(Typ.) | Max.Tc |
| SS-650VP-56BH | 90-305 | 28-56 | 48-56 | 1.4-13.5 | 10% | 0.95 | 95% | 90℃ |
| Outside carton dimension | L×W×H =495×385×162 (mm) |
| Number of packages per Carton | 5 PCS |
| Net weight/PC | 3.3kg |
| Gross weight/Carton | 17.7kg |
包装箱上有产品名称、型号、厂家标识、质量部门的检验合格证、制造日期等；包装箱内有《LED电源使用说明书》。
