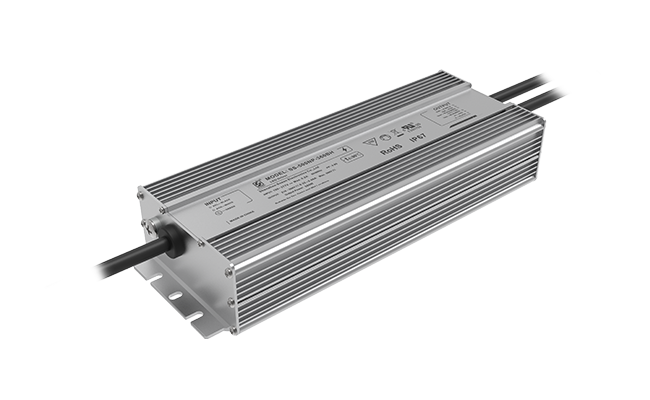

SS-500NP-360*

SS-500NP-360*

Product Features

Power：680W

Series：CC LED Driver

Application：Horticulture lighting, High Pole lighting, Stadium lighting, Fish lighting

Certificate：UL/cUL, ENEC, CB, CE, UKCA

Warranty：5 years

Product Description

CC LED Driver

Consult lmmediately
Specifications
Features
Parameters
Reference
Packing

Efficiency up to 96.5%

Dimming: 0-10V, PWM, Resistor, Timing

AUX Power: 12V/0.2A

IP67

Communication with PC

Protections: SCP/OTP

Standby Power<0.5W

Surge protection:  CM: 6kV, DM: 6kV

Warranty: 5 years

    Reted input voltage120~277Vac
    Input Frequency Range50/60Hz
    Max. Pout500W
    Dimension252*89.5*44.5（mm）
    ModelAC Input Range（Vac）Max. Pout（W）Vout Range（Vdc）Full Power Vout Range（Vdc）Iout（A）THD(Typ.)PF(Typ.)Eff.(Typ.)Max.Tc
    SS-680NP-360*90-305680210-360

    240-360

    		0.35-2.086%0.9896%90℃
    Carton dimensionL×W×H =493×385×116(mm)
    QTY7 PCS
    Net weight/PC1.66kg
    Gross weight/Carton12.87kg
