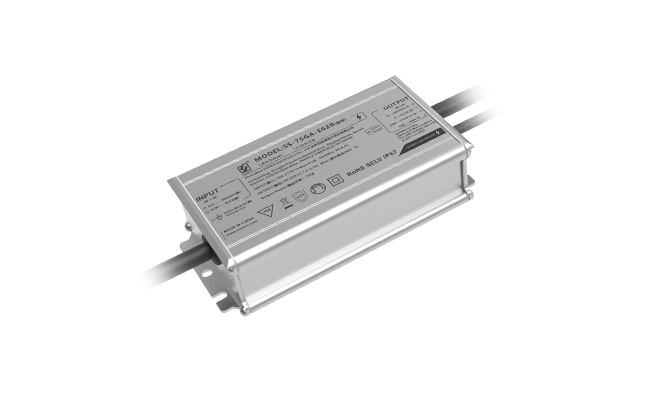

SS-75GA-EXXX*

SS-75GA-EXXX*

Product Features

Power:75W

Series:CC LED Driver

Application:High Pole light, High bay light, Stadium light, Horticulture light, Fish light, Street light, Tunnel light, Stage light

Certificate:ENEC, EAC, UKCA, CCC, DALI-2, CE

Warranty:5 years

Product Description

CC LED Driver

Consult lmmediately
Specifications
Features
Parameters
Reference
Packing

Efficiency up to 88%

Output current can be adjusted by NFC(DALI-2)

Isolated dimming: DALI-2, 0-10V, PWM, Resistor

Communication Function With PC

Timing and Negative logic programmable

ELA

Suitable for Class I /II lamps

Protections: SCP/OTP/OVP/OPP/Power automatic

derating at AC low line voltage input

Surge protection: CM: 10kV(For ClassⅠ), DM: 6kV

IP67

Warranty: 5 years

    Reted input voltage 100~305Vac
    Input Frequency Range 50/60Hz
    Max. Pout 75W
    Dimension 138*66*35.5(mm)
    Model AC Input Range(Vac) Max. Pout(W) Vout Range(Vdc) Full Power Vout Range(Vdc) Iout(A) THD(Typ.) PF(Typ.) Eff.(Typ.) Max.Tc
    SS-75GA-E62* 100-305 75 30-62

    35-62

    0.35-2.1 8% 0.97 88% 90℃
    SS-75GA-E108* 100-305 75 54-108

    71-108

    0.1-1.05 8% 0.97 89% 90℃
    SS-75GA-E143* 100-305 75 72-143

    108-143

    0.1-0.7 8% 0.97 89% 90℃
    Carton dimension L×W×H =495×385×162 (mm)
    QTY 14 PCS
    Net weight/PC 0.56kg
    Gross weight/Carton 9.1kg
