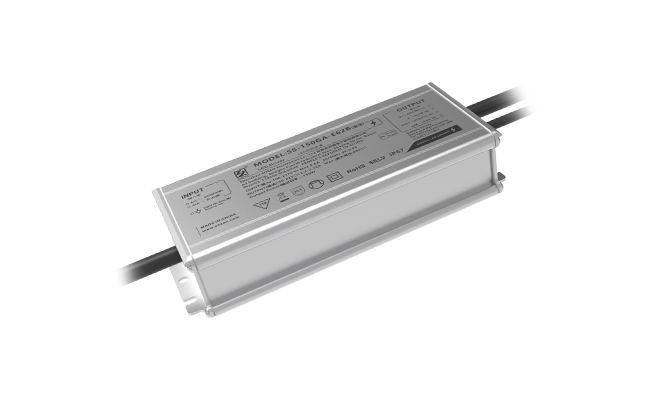

Power：150W
Series：CC LED Driver
Application：High Pole light, High bay light, Stadium light, Horticulture light, Fish light, Street light, Tunnel light, Stage light
Certificate：ENEC, EAC, UKCA, CCC, DALI-2, CE
Warranty：5 years
CC LED Driver
Efficiency up to 93.5%
Output current adjustment method:
NFC programming (D/DE models)
Dimmer line programming (B/BE models)
Isolated dimming: DALI-2, 0-10V, PWM, Resistor
DALI-2 certification (Part251, 252, 253)
Integrated Power Monitoring with High Accuracy up
to ±1% (D/DE models)
TIM，ELA，CLO
Suitable for Class I /II lamps
Protections: SCP/OTP/OVP/OPP
Surge protection: CM: 10kV, DM: 6kV
IP66/IP67
Warranty: 5 years
| Reted input voltage | 100~305Vac |
| Input Frequency Range | 50/60Hz |
| Max. Pout | 150W |
| Dimension | 165*66*35（mm） |
| Model | AC Input Range（Vac） | Max. Pout（W） | Vout Range（Vdc） | Full Power Vout Range（Vdc） | Iout（A） | THD(Typ.) | PF(Typ.) | Eff.(Typ.) | Max.Tc |
| SS-150GA-E62* | 100-305 | 150 | 30-62 |
40-62 |
0.7-3.75 | 8% | 0.98 | 91.5% | 90℃ |
| SS-150GA-E143* | 100-305 | 150 | 72-143 |
100-143 |
0.35-1.5 | 8% | 0.98 | 92.5% | 90℃ |
| SS-150GA-E215* | 100-305 | 150 | 107-215 |
143-215 |
0.1-1.05 | 8% | 0.98 | 93.0% | 90℃ |
| Carton dimension | L×W×H =495×385×162 (mm) |
| QTY | 14 PCS |
| Net weight/PC | 0.68kg |
| Gross weight/Carton | 11kg |
